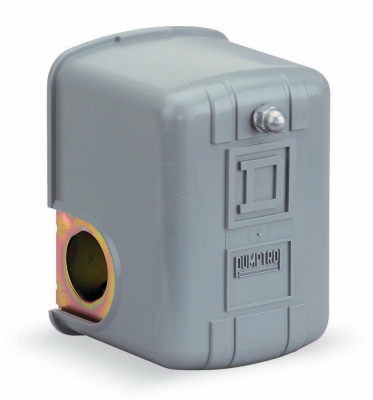

Square D Pumptrol FSG2J24M4CP Electromechanical Pressure Switch. It has a pressure setting range of 40 PSI to 60 PSI and activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached. The adjustable differential range is 15 PSI to 30 PSI and the cut out range is 20 PSI to 65 PSI. The low-pressure cut-off (auto-start-off) operates at approximately 10 PSI below the cut-in and will turn off the pump. The NEMA 1 enclosure has a 1/4 inch NPSF internal fluid connection and screw clamp terminals. The switch works with a 1.5 HP or less pump. It is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified. Packaging information: 1 Pack.
- 40-60 PSI
- For commercial and industrial pumping applications.
- Pressure setting range of 40 PSI to 60 PSI.
- Activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached.
- Adjustable differential range is 15 PSI to 30 PSI.
- Cut out range is 20 PSI to 65 PSI.
